Multiman e Multiman I

Product > Manometers and Vacuum Meters > VacuumMeters

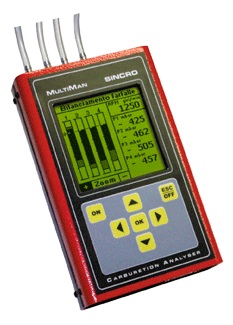

• Handheld diagnostic tool, displays at the same time values of four throttle valve balancing, air box pressure, RPM, atmospheric pressure, air humidity and temperature, engine temperature, diagnoses leakages of inlet or exhaust valves and loss of cilynders’ compression.
• Can do the work of five mechanical manometers.
Reading of digital values and immediate comparison
of relevant histograms.
Zoom function for a better resolution of differences.
• Allows to maximize performance of racing and
road engines on power test benches or on the road, looking to reduce consumption and exhaust gas emissions, without compromising sportiness.
• Calculates and displays air density at different
environment temperatures, humidity and atmospheric pressures, optimizing air-fuel mixture.
• Acquisition and storage up to five screenshots
of measurements and five of environmental parameters, printing and sending data to PC by RS 232 serial port.

TECHNICAL FEATURES AND MEASUREMENTS

• Vacuum/pressure: – 1÷ 1bar (only ch.1) ± 2,5%
• Pressure (MAP): 0 ÷ 2050 mbars ± 2,5%
• Atmospheric press.: 700 ÷ 1050 mbars± 2,5%
• RPM: 300 ÷ 19,999 revs
• Display LCD: 128 x 128 pixels backlit
• Power supply: 6 x1.2 V internal accumulators
• Dimensions: 184 x 114 x 40 mm
• Weight: 800 g approx.

OPTIONS

• Adapter for oil temp.: – 40 ÷ 250°C ± 2,5%
• Adapter for plug temp.: – 40 ÷ 850°C ± 2,5%
• Air temperature and – 50 ÷ 120°C ± 1%
air humidity sensor: 0 ÷ 100%RH ± 2%
• Air density calculation: >1,5 kg/m3 (50% RH)
• Battery charger: 220 Vca - 12 V cc.
• Thermal printer: 24 columns, with frame for
internal battery and constant current battery charger.
