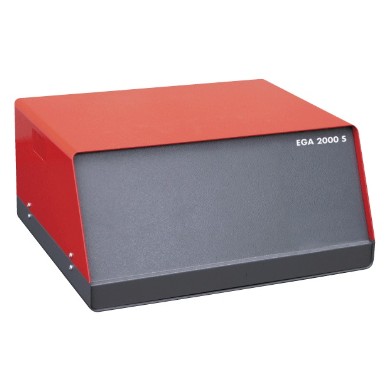

EGA 2000S - SINCRO automotive tester attrezzature diagnostiche per officine

Solidly built for a continuous work. OIML R99 (class 0) ISO 3930 analysis bench, homologated BAR 97. Satisfies the requirements of the Italian Ministerial Decree 628/96 and following modifications.
Equipped with PT 1000 temperature probe and inductive clamp for RPM measurements from spark cables or primaries of coil per plug engines.
RS 232 serial port for connection to PC with EGALINK IV software.
Fuels analysed: petrol, LPG and methane.
Displaying of data on PC screen and printing from the PC printer.

MEASUREMENTS AND MAIN TECHNICAL FEATURES
HC: 0 ÷ 15 000 ppm (hexane)
CO: 0 ÷ 10.00%
CO2: 0 ÷ 16.00%
O2: 0 ÷ 25%
Lambda: 0.6 ÷ 1.4
CO corrected: 0 ÷ 10.00%
RPM: 300 ÷ 12 000
Temperature: 0 ÷ 130°C

• Ready for use after one minute from switching on.
• Response time within 15 s with a 6 m probe length.
• 4/2 stroke selection on conventional and DIS ignition systems.
• Automatic request of daily calibration.
• Atmosph. pressure compensation: 850÷1150 mbars.
• Automatic drain of water condensation through diaphragm pump, two-stroke engine oil proof.
• Automatic check of flow and tightness of intake circuit.
• Indication of exhausted O2 and NOx sensors.
• Power supply: 115 or 230 V ac ±10%/47÷63 Hz or 12 V vehicle battery.
• Dimensions: 390 x 325 x 180 mm.
• Weight: 9 kg approx.

OPTIONS

OBD II GT:    engine RPM / temperature reader.

OBD II Extended: RPM / tempereture reader, engine fault code reader / eraser, reader of engine function parameter.

NOXO 100:   Temperature compensated NOx sensor, from 0 up to 5000 ppm.
